Reel and Roll Handling Equipment


VV Unload Truck with 24H Battery Change Packs




Reel Handling Trucks available from 500Kg up to 2000Kg capacity fully powered drive and lift to handle reels of varying diameters up to a weight of 1000kg.

All Spacemate built trucks are available with up to 24 hr cycling battery packs as an option.








Reel or Roll Turn and Lift





Roll turners are available in many configurations. Straight horizontal to vertical forward facing lift.  To trucks which rotate the reel around its centre of gravity ensuring maximum lift capacity.

In operation, a core chuck is inserted into the reel core with a hand operated release which is only possible to operate when the reel is placed safely in either horizontal or vertical configuration.

 Gripping lugs of the chuck grip automatically into the core. The heavier the load, the harder the grip. The same mechanism is used for reels from 10kg to several tonnes.






SUT
Slitter Unloader Truck

Slitter Unload Trucks are available either as a straight vertical to horizontal or with a variety of extras such as with Reel Puller, crane hoist with a vertical roll lifter.




SGST
Sack Grab 'n' Stack Truck




Sack Grab for stacking and unstacking of heavy goods bags, made effortless with the double boom arm and winch, for food, chemical and horticultural Industries.

Reel Turner with Integrated Anti-telescope clamp

For product which may be prone to telescoping during movement an optional anti telescoping clamp is available.  The clamp is self monitoring to suit the roll media to prevent over clamping and subsequent damage.





Roll Turner with SideShift

The SpaceMate Roll Turner is designed to turn rolls through horizontal to vartical and vice versa with the use of core chuck.

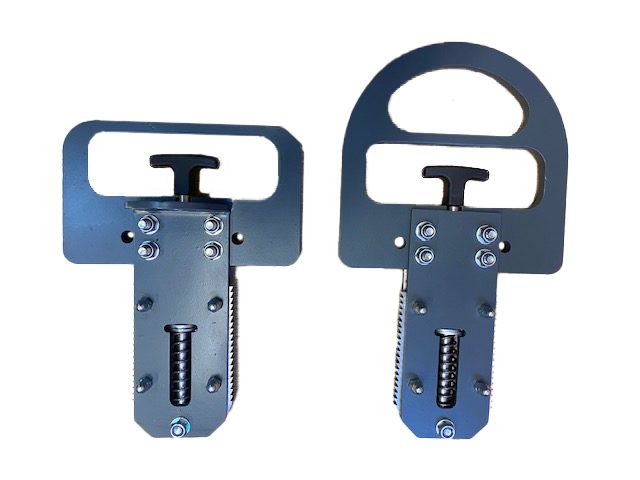

Manual VRL (Vertical Reel Lifters)

Short Series
Standard 500mm series
For 76mm (3" cores)& 150mm (6" core) variants.
Optional three jaw models
